Material cutting and forming - Královopolská Brno

Basic information

Cutting

  • Shearing machine - cutting length up to 4 000 mm, maximum thickness of steel is 20 mm, for aluminum up to 70 mm.

Burning

  • Formed segments on a CNC machine or on a machine-operated photocell.
  • Oxy-cutting machine with four burners on carbonic material, maximum length of 10 000 mm, width of 4 000 mm, thickness of 300 mm.
  • Oxy-cutting machine - plasma for stainless steel, operated by a photocell for a thickness up to 120 mm, for connection of two units, a width of 2 000 m, length of 5 000 mm.

Chipping division

  • The maximum dimension of the divided material is a diameter of 530 mm or 710 x 530 mm.
  • Productive material division (in batches) for a maximum diameter of 430 mm.
  • Angular division within the range - 45° + 60°
  • Division on automatic circular and band saws

Forming

  • 800 ton pre-bending press
  • 550 ton press brake
  • 400 ton straightening press

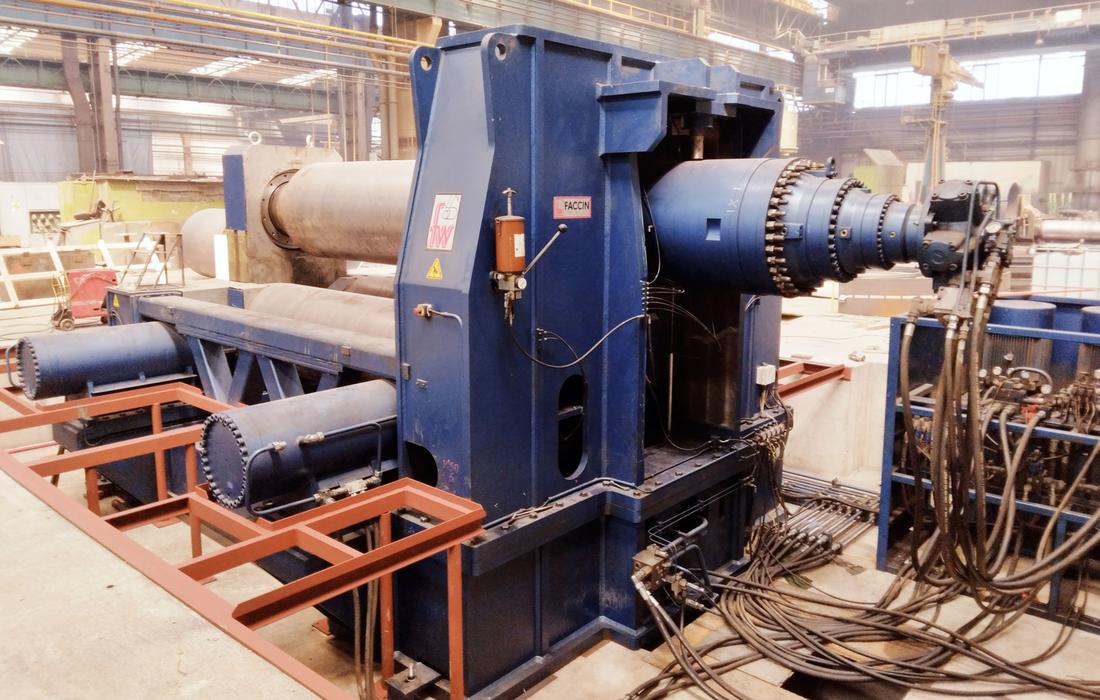

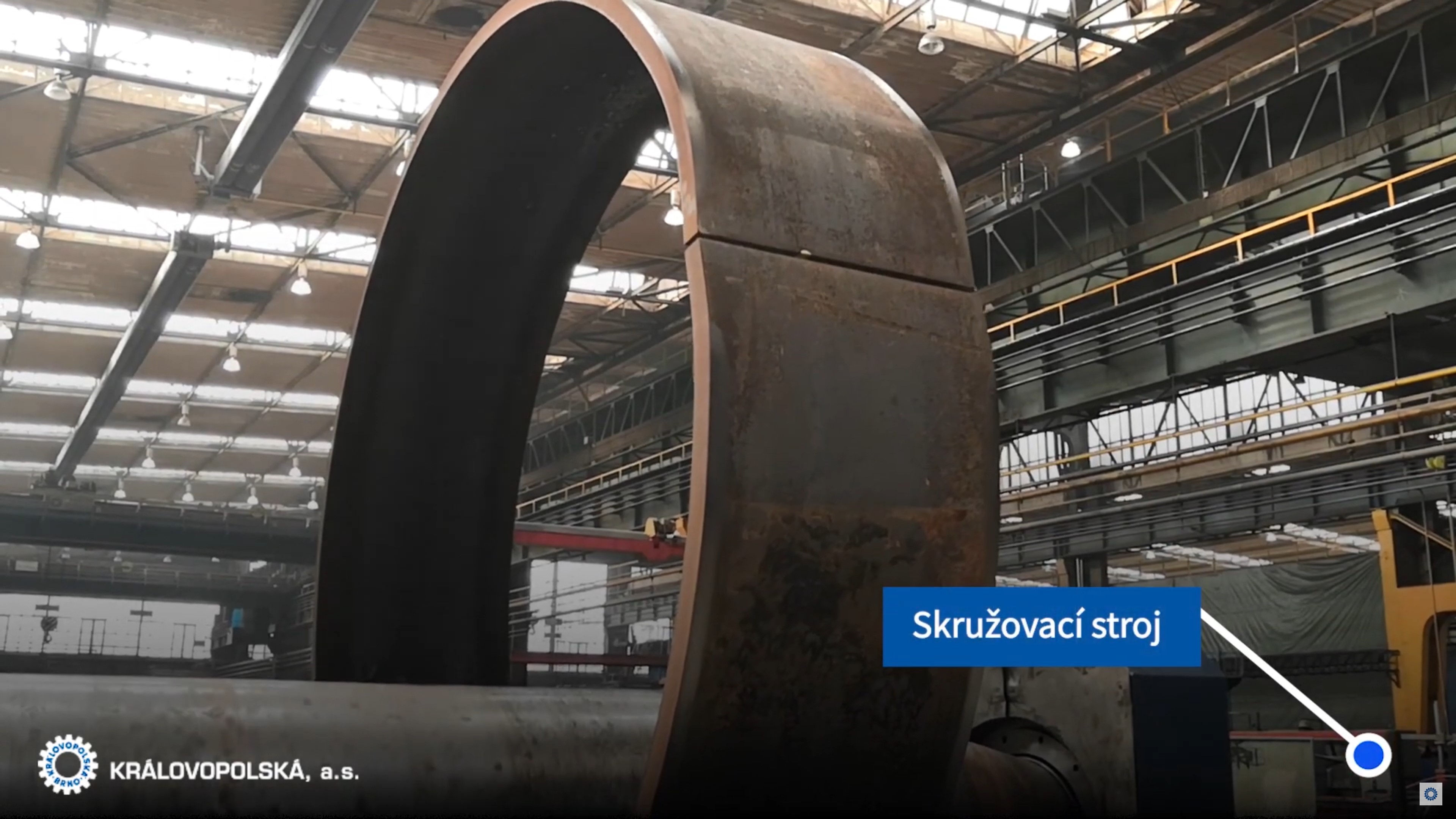

  • Rolling sheet metal with a maximum thickness of 50 mm
  • Rolling profiles

References

References Ammonia Evaporator (E-103A) - Královopolská Brno

Ammonia Evaporator (E-103A)

Year: 2018
Weight: 14,3 t
Navoiy, Uzbekistan
Digester - production of pressure vessel

Digester No. 9

Year: 2018
Weight: 36,3 t
Ruzomberok, Slovakia
References Distric Heater (DHE 3) 1798 m2 - Královopolská Brno

Distric Heater (DHE 3) 1798 m2

Year: 2019
Weight: 46,6 t
Vilnius, Lithuania
References Heat exchangers - 4 pcs - Královopolská Brno

Heat exchangers - 4 pcs

Year: 2007
Weight: 22 t
Daura, Basrah, Iraq
References Overhead crane 5 t x 16.5 m - Královopolská Brno

Overhead crane 5 t x 16.5 m

Year: 2012
Brno, Czechia
References Reactor R-101 - Královopolská Brno

Reactor R-101

Year: 2018
Weight: 7,5 t
Belarus
References Steam Drum - Královopolská Brno

Steam Drum

Year: 2019
Weight: 15 t
Bandurka, Ukraine
References Steam Surface Condenser (1605 m2) - Královopolská Brno

Steam Surface Condenser (1605 m2)

Year: 2019
Weight: 48 t
Chana, Thailand
References Steam Surface Condenser (2036 m2) - Královopolská Brno

Steam Surface Condenser (2036 m2)

Year: 2018
Weight: 40,7 t
Hyltebruk, Sweden
References Steam Surface Condenser (539 m2) - Královopolská Brno

Steam Surface Condenser (539 m2)

Year: 2019
Weight: 18,2 t
Rustavi, Georgia
References Stripper (E-201) - Královopolská Brno

Stripper (E-201)

Year: 2014
Weight: 120t
Kiev, Ukraine
References Suction set of the  Francis turbine - Královopolská Brno

Suction set of the Francis turbine

Year: 2014
Weight: 20 t
Peshqeshit, Albania
